5600 Order Picker Order Picker Forklift
-
-
ACR System
Delivers smooth, precise speed control and fewer maintenance points than other AC motor systems.ACR System -
Auto-Steer Centering
Electronic power steering with auto-steer centering offers superior maneuverability that can help to reduce truck, product and rack damage.Auto-Steer Centering -

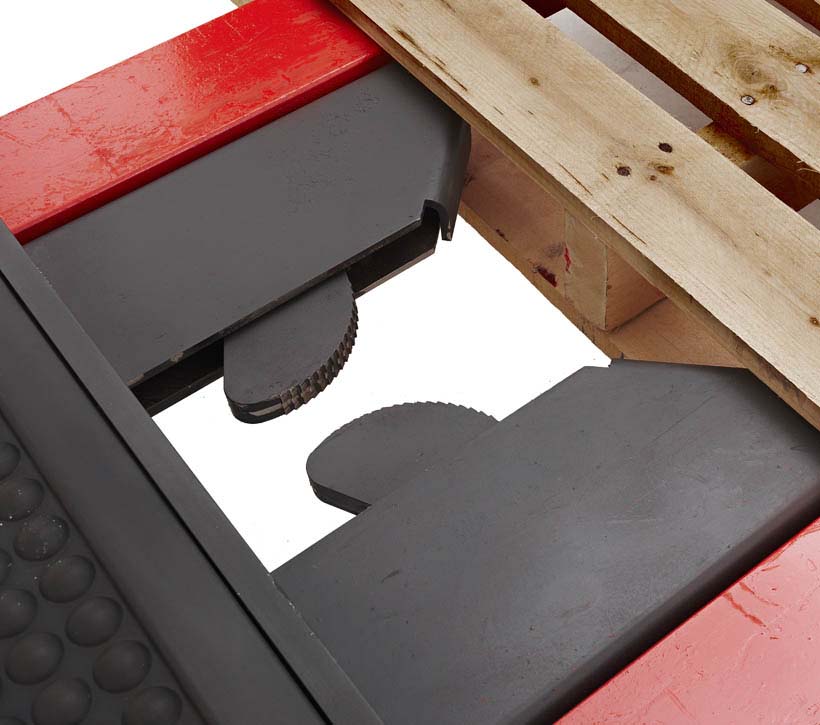

Auto-Locking Pallet Clamp
Automatically locks onto the pallet stringer as soon as the pallet is in place.Auto-Locking Pallet Clamp -

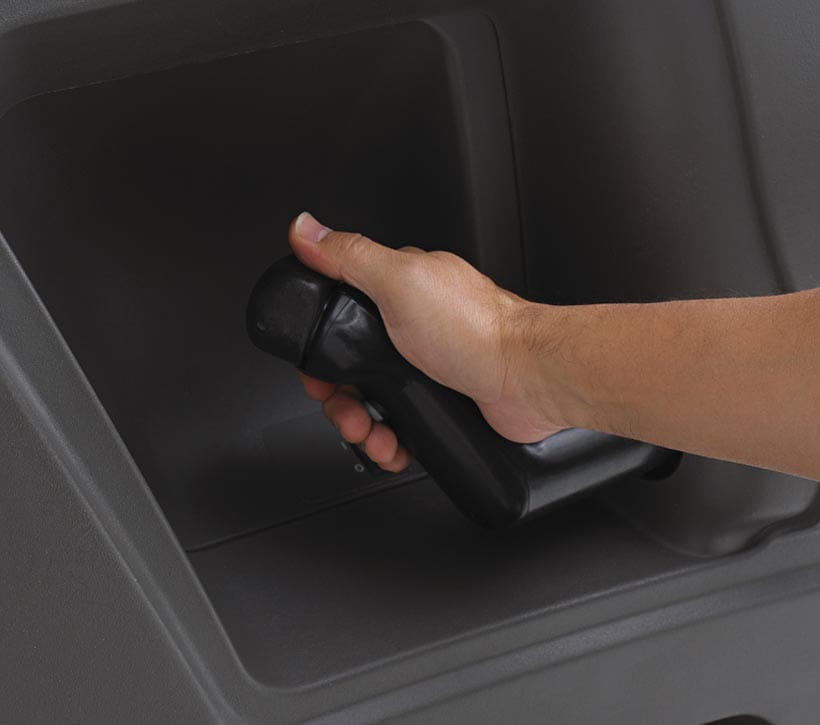

Variable, Simultaneous Function Handle
Infinitely variable lift and lower control provides smooth control for precise platform work.Variable, Simultaneous Function Handle -
Performance Driven Lift/Lower Speeds
25% faster than our current model, increased performance when you need it most.Performance Driven Lift/Lower Speeds

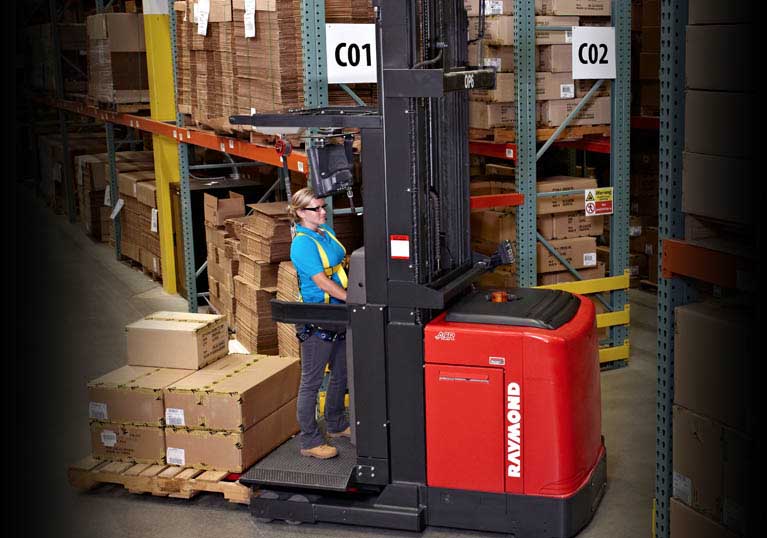

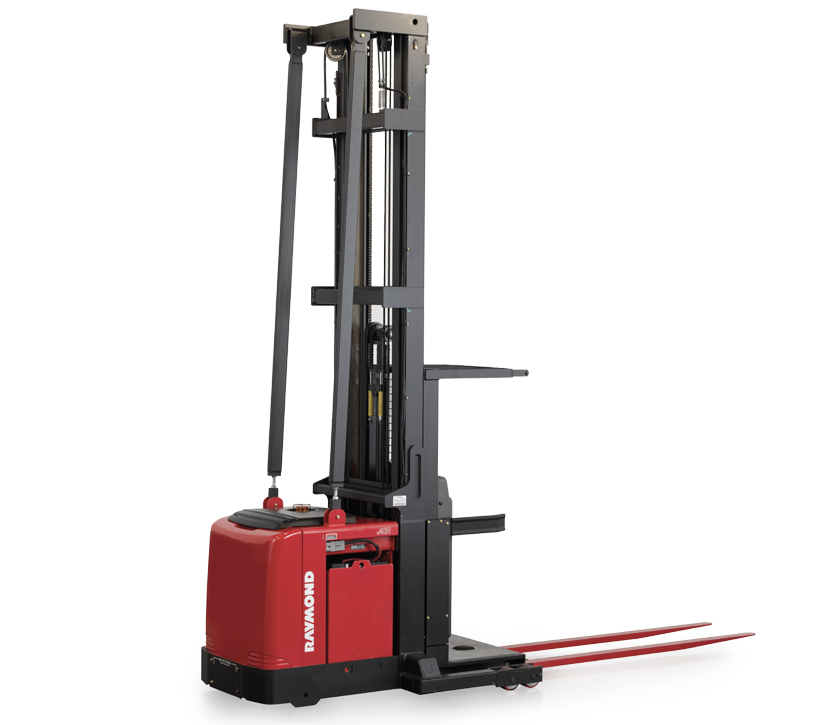

World-Class Performance, Shift After Shift
The 5600 Orderpicker is Raymond’s top-performing order picker truck. The 5600 stock picker is best suited for high throughput, elevated height, 36 volt applications. The ACR System provides quick acceleration and AC Drive and AC Lift. Boost operator productivity with the intelliguide wire guidance system to minimize steering requirements in aisles, and the intellispeed system to optimize travel speeds at height.
- Battery: 36 volt
- Capacity: 3,000 lbs
- Elevated Height: 390" maximum
- Load Center: 24" Load Center
- Motor System: AC Drive & AC Lift Motors
Built to Perform
-

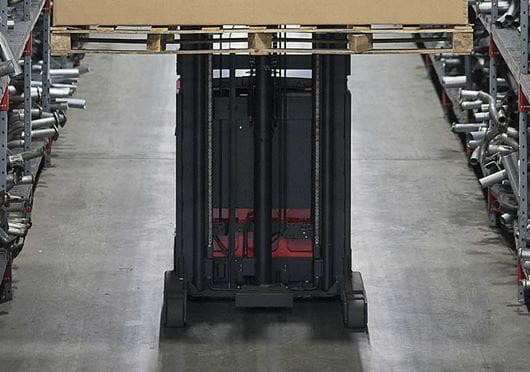

intelliguide Wire Guidance System
The optional wire guidance system frees operators from steering responsibilities in very narrow aisles. The system quickly and reliably engages guide signals. And its patented no-tune design provides excellent tracking and stability. -

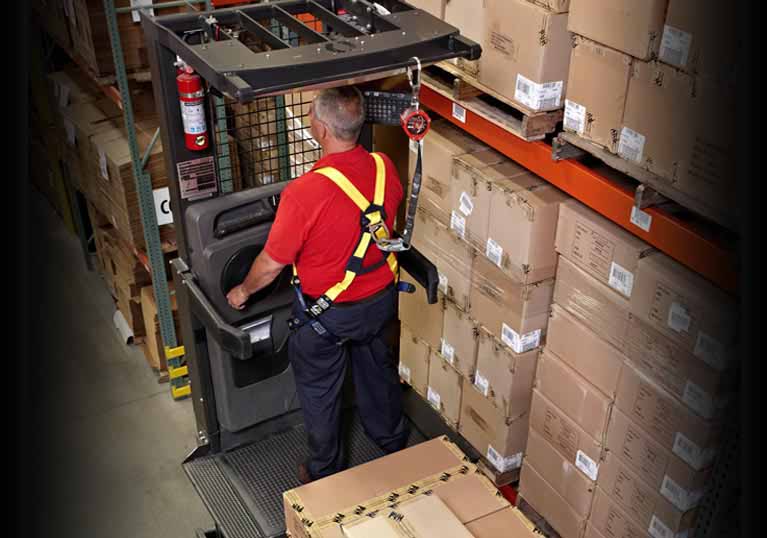

Precise Platform Movement
With variable lift speeds and better control of load handling, operators can get to the pick smoothly and efficiently, without the jerky motion they experience on other brands. Precise feathering of the platform takes the operator closer to the pick. -

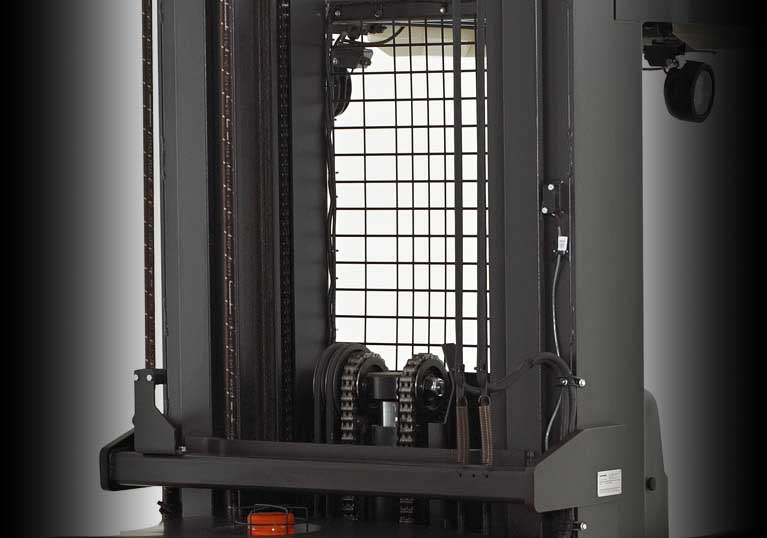

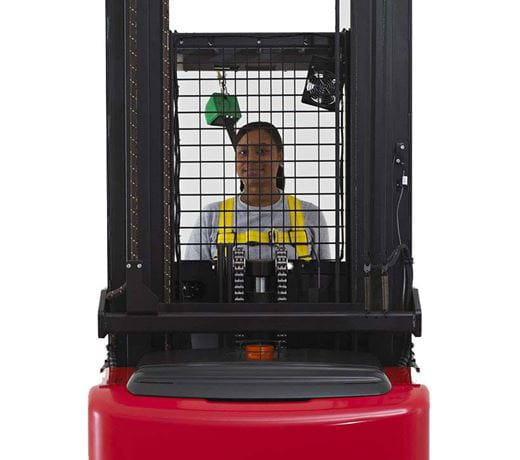

Visibility
Raymond's clear view mast design and wraparound operator compartment offers a panoramic view of racks, loads and aisles.
-
Easy-to-Read Display
The operator display provides easy to read information to increase efficiency. -

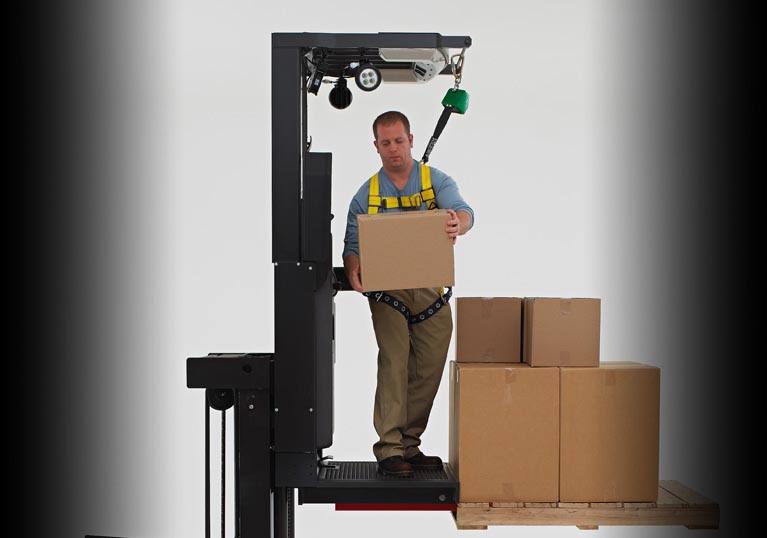

Large Pick Window
Easily movable sidegates allow operators to open the case-picking window, helping them to be more productive. -
Smooth Operation
Patented suspension and smooth mast staging isolate vibrations from the operator.
-

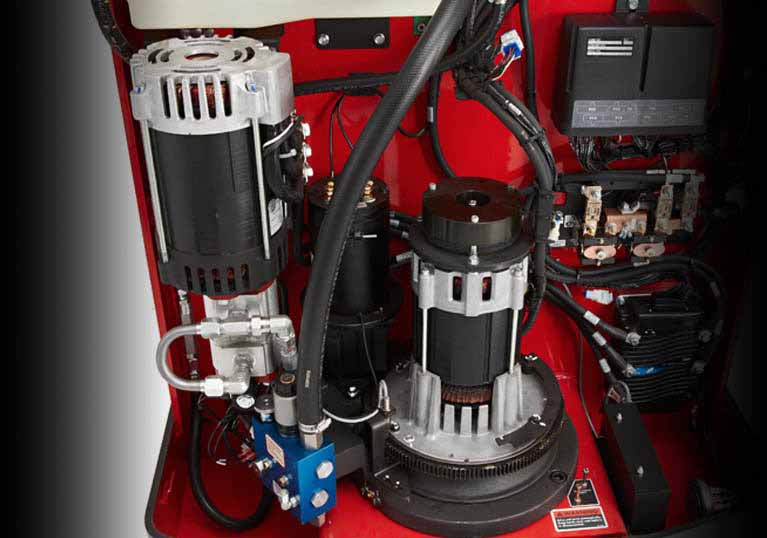

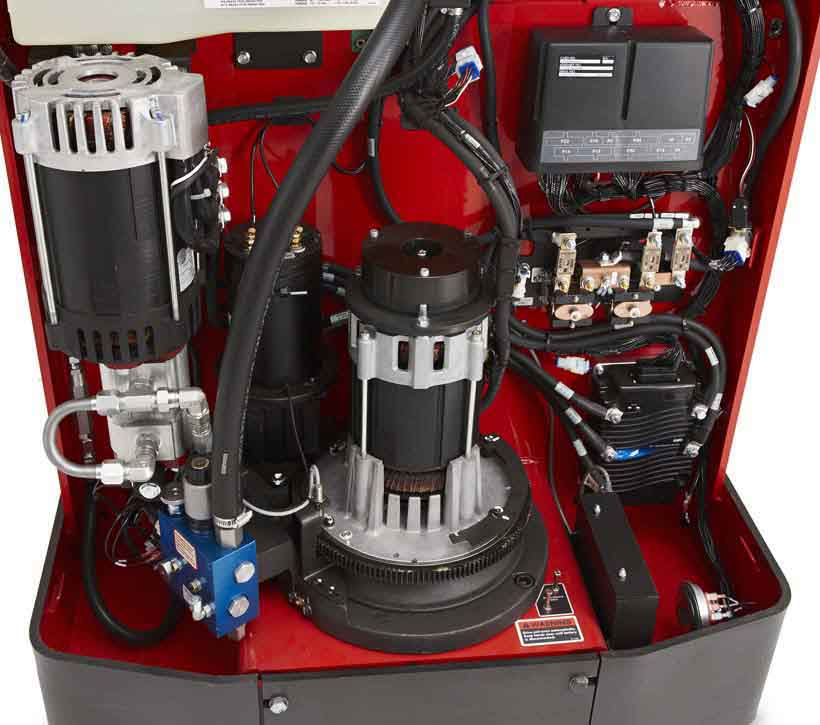

AC Power
Equipped with our exclusive ACR System, the 5600 Orderpicker has lower maintenance and parts costs, fewer service requirements, increased battery performance, and superior truck utilization rates compared to DC-powered lift trucks. That means a better bottom line for you. -

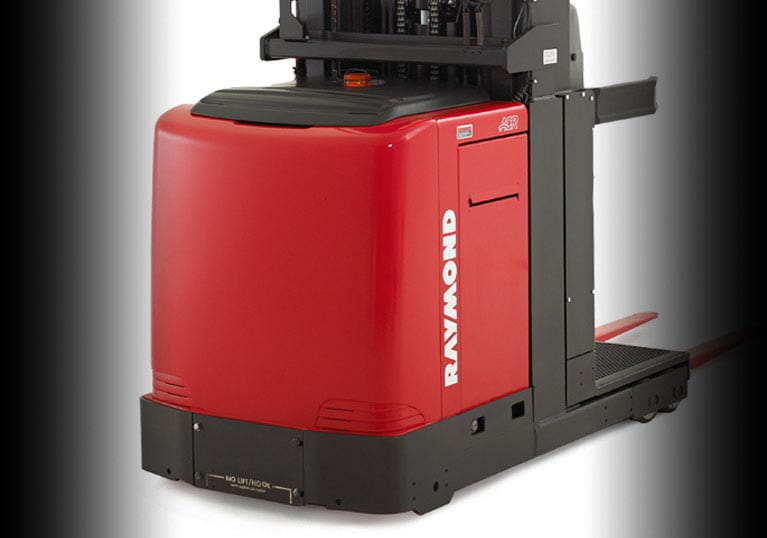

Cover Access
The impact-resistant cover allows easy access to the drive tire and other components for convenient service access. -

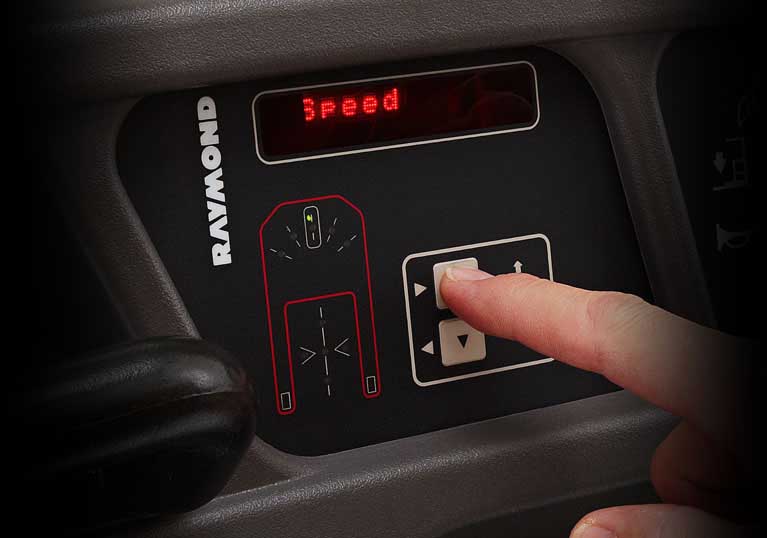

Comprehensive Self-Diagnostics
Audible and visual signals alert operators instantly when service issues arise, and provide detailed information to simplify troubleshooting and service.
-

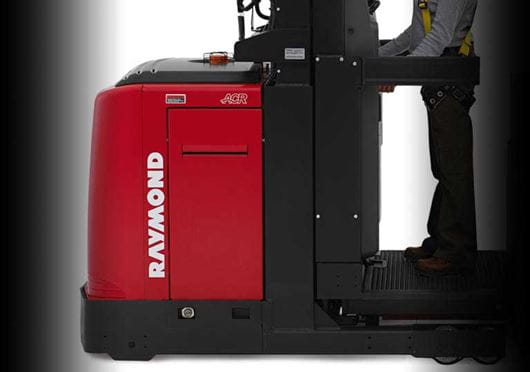

Battery Commonality
Standard battery compartment widths and the 36 volt battery allow for standardization of batteries across various models to reduce battery and charger area. -

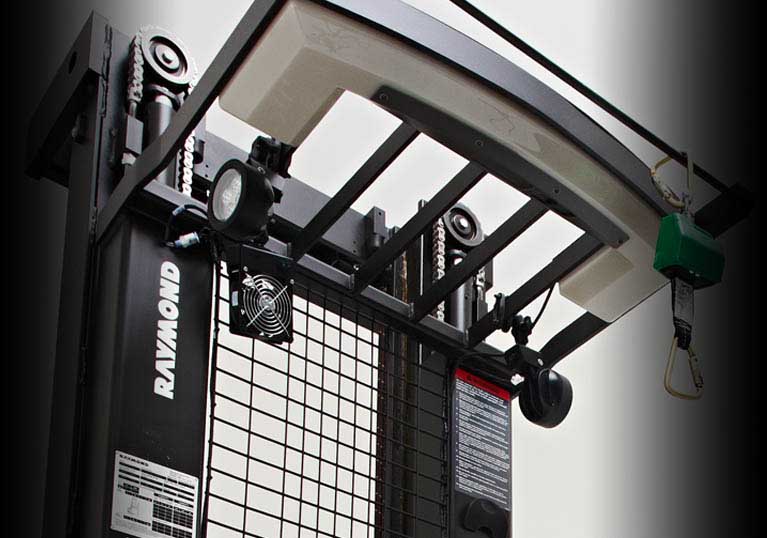

LED Light and Fan Package
Improve operator visibility for case and piece picking tasks with the optional LED light package. -

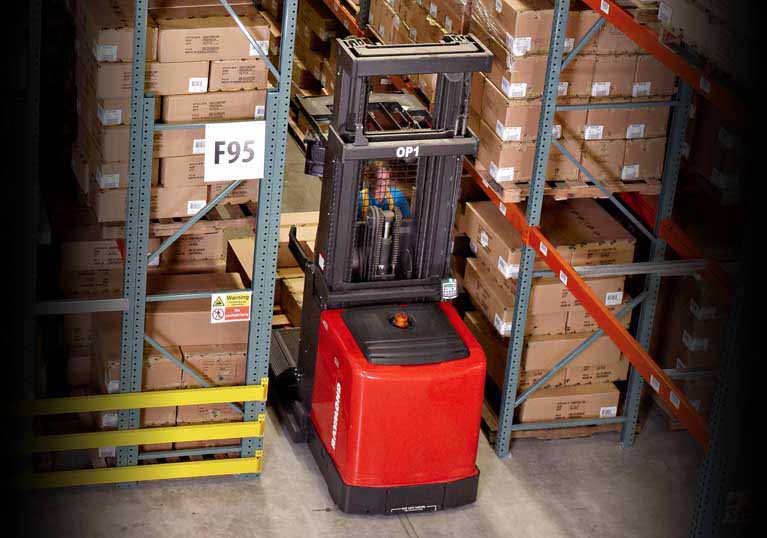

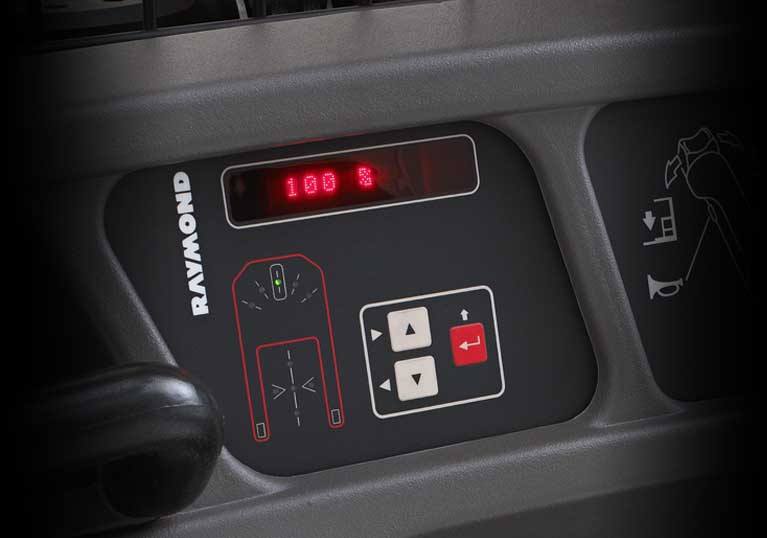

Fully Programmable
Custom-configure your 5600 Orderpicker truck to accommodate operator skill levels and other variables.
-

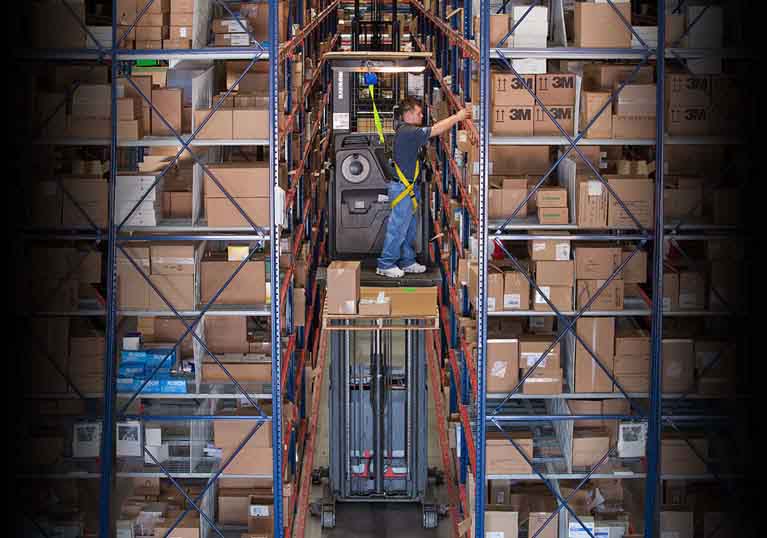

Efficient Energy Usage
Our AC Orderpicker trucks use fewer amps per cycle, so you’ll save on batteries, chargers and downtime. And superior energy efficiency means batteries last longer. -

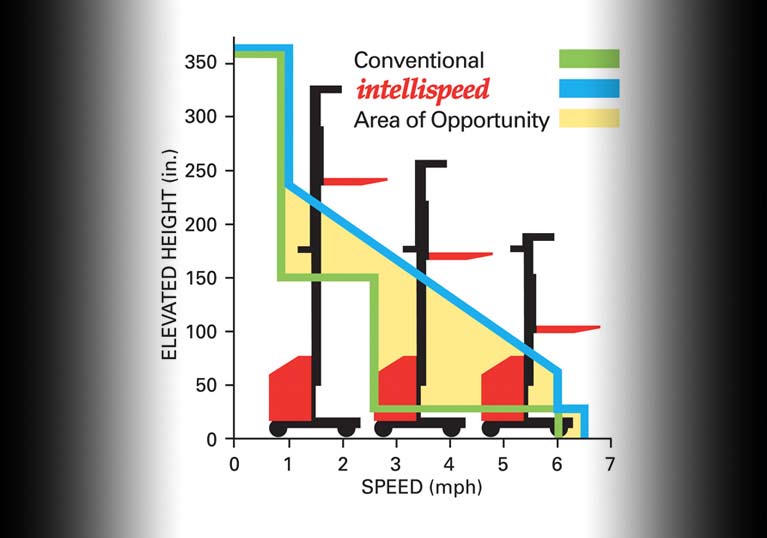

Optimal Speed Control
The optional intellispeed ™ system smoothly coordinates travel speeds and load height. This Raymond-exclusive feature maximizes truck speed as the platform rises, capitalizing on an area of opportunity for providing faster travel between picks compared to conventional speed control.
